Yamakoyo » Welding Machines

Yamakoyo Welding Machines

Yamakoyo Welding Machines

Yamakoyo Welding Machines

Downloads

  • Warrant Form



Features

  • IP21S Protection



Warranty

  • Non-Commercial/Non-Rental: 6 months



WElding Machine Models

Models
ROBUST 180
  • Main Voltage: AC230/400
  • Frequency: 60
  • Input Capacity: 3.5
  • No Load Voltage: 48
  • Welding Current: 75-180
  • Duty Cycle: 10
  • Min. Electrode: 2
  • Max. Electrode: 4
  • Insulation Class: F
  • Protection Degree: IP21S
  • Dimensions: 510mm x 260mm x 365mm
  • Weight: 18.5 Kg
ROBUST 180
MIG 130
  • Main Voltage: 1PH-230
  • Frequency: 60
  • Input Capacity: 2.2
  • No Load Voltage:21-32
  • Welding Current: 35-117
  • Duty Cycle: 15
  • Wire Spool: 0.8 Kg 100
  • Power Settings: 4
  • Flux Cored Wire: 0.8-0.9
  • Wire for Steel: 0.6-0.8
  • Insulation Class: H
  • Protection Degree: IP21S
  • Dimensions: 585mm x 255mm x 375mm
  • Weight: 28 Kg
MIG 130
MARS 180
  • Main Voltage: 1PH-230
  • Frequency: 60
  • Input Capacity: 3.2
  • No Load Voltage: 21-32
  • Welding Current: 35-165
  • Duty Cycle: 15
  • Wire Spool: 0.8-5 Kg 100-200
  • Power Settings: 8
  • Flux Cored Wire: 0.8-1.0
  • Wire for Steel: 0.6-0.8
  • Wire for Stainless Steel: 0.8
  • Wire for Aluminum: 0.8
  • Insulation Class: H
  • Protection Degree: IP21S
  • Dimensions: 715mm x 395mm x 480mm
  • Weight: 32 Kg
MARS 180

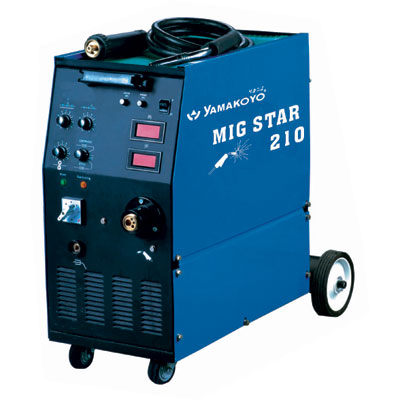

MIG STAR 210
  • Main Voltage: 1PH-230
  • Frequency: 60
  • Input Capacity: 6.4
  • No Load Voltage: 21-39
  • Welding Current: 40-210
  • Duty Cycle: 25
  • Wire Spool: 15 Kg 300
  • Power Settings: 6
  • Flux Cored Wire: 0.8-1.0
  • Wire for Steel: 0.8-1.0
  • Wire for Stainless Steel: 0.8
  • Wire for Aluminum: 0.8
  • Insulation Class: H
  • Protection Degree: IP21S
  • Dimensions: 900mm x 440mm x 700mm
  • Weight: 32 Kg
MIG STAR 210
BOOST STAR 220
  • Main Voltage: 1PH-230
  • Frequency: 50/60
  • Charge Voltage: 12-24
  • Input Capacity: 2.0
  • No Load Voltage: 21-39
  • Welding Current: 40-210
  • Duty Cycle: 25
  • Wire Spool: 15 Kg 300
  • Power Settings: 6
  • Flux Cored Wire: 0.8-1.0
  • Wire for Steel: 0.8-1.0
  • Wire for Stainless Steel: 0.8
  • Wire for Aluminum: 0.8
  • Insulation Class: H
  • Protection Degree: IP21S
  • Dimensions: 900mm x 440mm x 700mm
  • Weight: 32 Kg
BOOST STAR 220
