Features and Benefits

• Heavy duty, all steel construction
• Hollow one inch spindle provides larger bearings for longer wear
• Blade mounts on a 1/2 inch shear bolt to protect the spindle
• Dual purpose blade lever engages the blad and adjusts blade depth
• Solid steel control rod
• One year limited commercial warranty

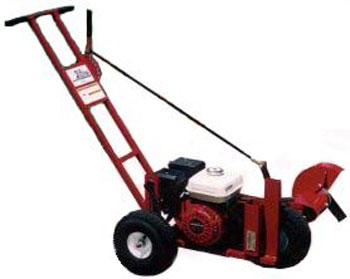

Model E104H EdgeMaster™

The Model E104H creates a new standard for the commercial edging industry. Designed with the rental industry in mind, this edger is built to take extreme abuse.

Model	E104H
Engine	4 or 5.5 HP with Oil Alert (Honda or GX Series Honda)
Weight	115 lbs.
Drive System	Double Belt
Wheels	Steel with 9" Pneumatic Tires
Ignition System	Transistor
Top Governed Speed	3900 RPM
Valve System	Overhead Valves
Fuel Capacity	3.88 Quarts
Construction	Structural Steel
Frame	10 Gage Steel Plate
Clutch System	Idler Pulley
Depth Control	Clutch Lever
Blade Size	Up to 10in
Blade Guard	Semi-enclosed
Max. Curb Height	10in
Bearings	1in Industrial
Blade Mount	1/2in Grade 8 Bolt
Blade & Tool Holder	3in Steel Tubing
