Rotor Guide

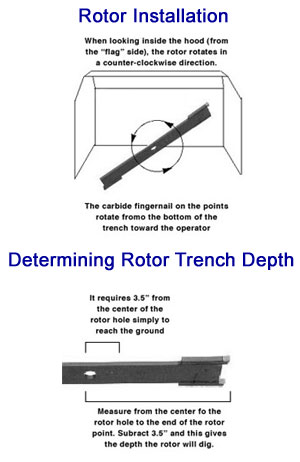

Rotor Installation
CLAY ROTORS
F-701 CLAY ROTORS (3/4" SHAFT ONLY)
701-48 5" X 1",2 POINTS
701-54 7" X 1",2 POINTS
701-57 4" X 2",3 POINTS
701-55 5" X 2",3 POINTS
701-56 7" X 2",3 POINTS
F-703/4, F-780/1, F-903/4, F-990/1 & F-1201/2
702-81 3" X 1", 2 POINTS
702-82 4" X 1", 2 POINTS
702-82A 5" X 1", 2 POINTS
702-87 7" X 1", 2 POINTS
702-130 3" X 2", 3 POINTS
702-131 4" X 2", 3 POINTS
702-132 5" X 2", 3 POINTS
702-133 7" X 2", 3 POINTS
12-74 7" X 3", 5 POINTS
12-77 7" X 3", 7 POINTS
702-93 3" BEDMASTER ROTOR
702-89 4" BEDMASTER ROTOR
702-106 5" BEDMASTER ROTOR
702-107 6" BEDMASTER ROTOR
702-100 STUMPMASTER ROTOR
702-93R REDEFINING ROTOR
702-112 4 1/2" X 4 1/2" RAIN DRAIN
702-102 4 1/2" X 6" RAIN DRAIN
702-114 6" X 4 1/2" RAIN DRAIN
702-113 2" X 9" CURBING ROTOR
702-115 4" X 8" CURBING ROTOR
F-1202 CLAY ROTORS
12-90 9" X 1" (& F-991), 2 PTS
12-80A 10" X 1", 2 POINTS
12-91 12" X 1", 2 POINTS
12-110 9" X 2" (& F-991) 3 POINTS
12-111 10" X 2" 3 POINTS
12-112 12" X 2" 3 POINTS
12-113 13" X 2" 3 POINTS
12-74 7" X 3" 5 POINTS
12-75 9" X 3" (& F-991) 5 POINTS
12-76 12" X 3" 5 POINTS
12-77 7" X 3" 7 POINTS
12-78 9" X 3" (& F-991) 7 POINTS
12-81 10" X 3" 7 POINTS
12-79 12" X 3" 7 POINTS
12-80 10" X 3" 5 POINTS
12-97 8" X 4 1/2" RAIN DRAIN
12-95 10" X 4 1/2" RAIN DRAIN
12-94 12" X 4 1/2" RAIN DRAIN
TRENCHMASTER CLAY POINTS
12-85 STRAIGHT
12-85BTL BENT TO THE LEFT 10°
12-85BTR BENT TO THE RIGHT 10°
12-85L BENT TO THE LEFT 45°
12-85R BENT TO THE RIGHT 45°
ROCK ROTORS
F-701 ROCK ROTORS (3/4" SHAFT ONLY)
701-29 4" X 1 1/2" W/O POINTS
701-30 5" X 1 1/2" W/O POINTS
701-28 7" X 1 1/2" W/O POINTS
F-703, -781, -903 & -991 ROCK ROTORS
702-85 4" X 1 1/2" W/O POINTS
702-58 5" X 1 1/2" W/O POINTS
12-37 7" X 1 1/2" W/O POINTS
12-39 7" X 3" W/O POINTS
F-1202 ROCK ROTORS
12-37 7" X 1 1/2" W/O POINTS
12-37A 9" X 1 1/2" W/O POINTS (& F-991)
12-38 12" X 1 1/2" W/O POINTS
12-39 7" X 3" W/O POINTS
12-39A 9" X  3" W/O POINTS
12-40 12" X 3" W/O POINTS
ROCK ROTOR POINTS
701-32C ROCK ROTOR POINTS W/NUTS
701-33 POINT SOCKET
ROOT PRUNER ROTORS (3/4" SHAFT ONLY)
701-49 4" X 1/2" 1 POINT
701-50 5" X 1/2" 1 POINT
701-31 7" X 1/2" 1 POINT
F-703/4, F-780/1, F-903/4 & F-991  ROOT PRUNER
702-92 3" X 1/2" 1 POINT
702-90 4" X 1/2" 1 POINT
12-41A 5" X 1/2" 1 POINT
12-41 7" X 1/2" 1 POINT
F-1202 ROOT PRUNER ROTORS
12-41A 5" X 1/2" 1 POINT
12-41 7" X 1/2" 1 POINT
12-42A 9" X 1/2" 1 POINT
12-42 12" X 1/2" 1 POINT
BANTAM & REDEFINER ROTORS (3/4" SHAFT)
470-019 BANTAM BEDMASTER ROTOR
450-100 4" REDEFINER FOR R450H & HA & BANTAM
459-002 10" x 2" EDGER BLADE 3/4" SHAFT
460-002 4" X 1/2" WIREMASTER ROTOR
480-010 7" x 3/4" BANTAM MOLE ROTOR
E-94 & E-104 EDGER BLADES (1/2" HOLE)
E100-005 10" X 2 " BLADE
E200-029-10 10" STARBLADE (4.5MM)
E200-029-09 9" STARBLADE (4.5MM)
